METRIC
MIL-PRF-49291/6C
10 January 2003
SUPERSEDING
MIL-F-49291/6B
29 November 1994
PERFORMANCE SPECIFICATION SHEET
FIBER, OPTICAL, TYPE I, CLASS I, SIZE IV, COMPOSITION A, WAVELENGTH B,
RADIATION RESISTANT (METRIC)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of
this specification sheet and the issue of the following specification listed
in that issue of the Department of Defense Index of Specifications and
Standards(DODISS) specified in the solicitation: MIL-PRF-49291.
B
DIA
Coating
C
DIA
Cladding
Core
A
Dimensions
PIN
Fiber
A (µm)
B (µm)
C (µm)
M49291/6-02S
Space
250 ± 15
125 ± 1
62.5 ± 3
M49291/6-03
qualified
250 ± 15
125 ± 1
62.5 ± 3
Standard
M49291/6-04S
Space
500 ± 25
125 ± 1
62.5 ± 3
M49291/6-05
qualified
500 ± 25
125 ± 1
62.5 ± 3
Standard

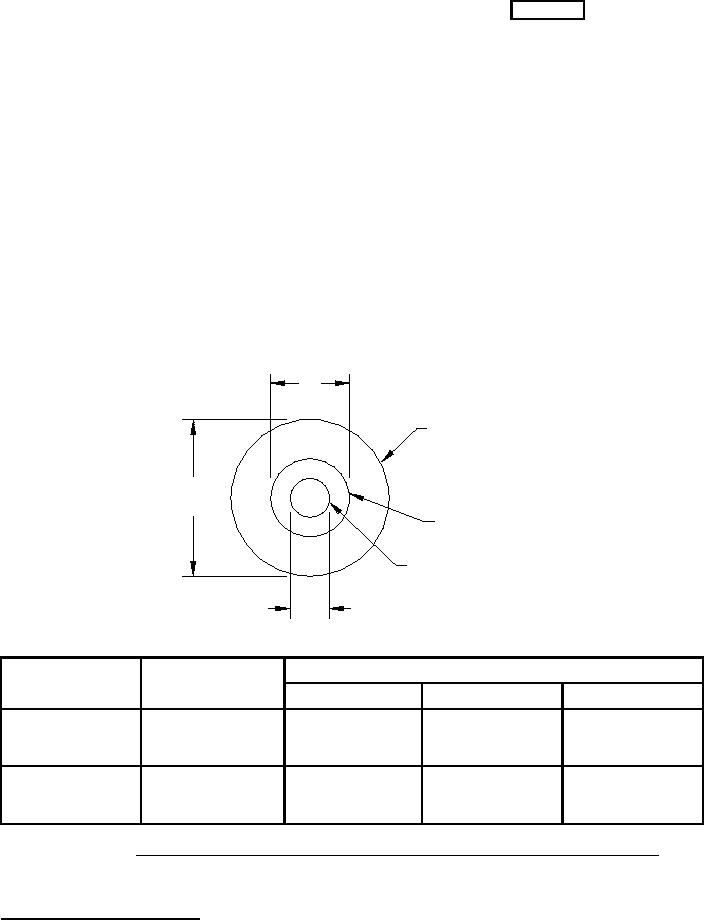

FIGURE 1.
Dimensions and configuration of optical fiber construction.
AMSC N/A
1 of 5
FSC 6010
